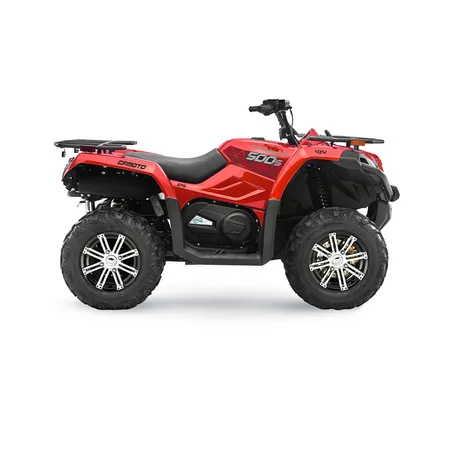

CFORCE 500 EPS Overview
The CFORCE 500 EPS is a versatile ATV designed for both work and recreational use. Powered by a 495–500 cc single-cylinder engine, it delivers solid performance with the added benefit of electronic power steering (EPS) for better handling. It comes equipped with a range of features including a winch, towing capacity, LED lighting, and a digital dashboard. This model is built for durability and comfort, making it ideal for a variety of terrains and tasks.
✅ Key Features
EFI 495 cc Engine: Single-cylinder, SOHC, liquid-cooled, producing approximately 34 hp at 6,200–6,800 rpm and a torque of 29–32 lb-ft.
CVTech IBC Transmission: Continuous variable transmission with Low, High, Neutral, Reverse, and Park settings.
Electronic Power Steering (EPS): Provides smooth and responsive handling, especially in challenging terrain or at low speeds.
Independent Double A-arm Suspension: Adjustable shock absorbers with 5 positions at both front and rear for a smoother ride over rough terrain.
LED Lighting: Full LED headlights, tail lights, and turn signals for enhanced visibility.
Digital Dashboard: LCD screen displaying key information such as speed, RPM, fuel level, and more.
2500 lb Winch: Integrated winch for additional utility, especially useful in off-road conditions or for towing.
Towing Capacity: Can tow up to 873 lb (396 kg), with a standard 2-inch hitch.
Rack Storage: Front and rear steel racks for carrying gear, with a 20/40 kg capacity.
📊 Specifications
| Feature | Details |
|---|---|
| Engine Type | Single-cylinder SOHC, liquid-cooled |
| Displacement | 495 cc (500 cc) |
| Max Power | 34 hp (25 kW) @ 6,200–6,800 rpm |
| Max Torque | 29–32 lb-ft (39–43 Nm) @ 5,800–6,000 rpm |
| Compression | 10.3:1 |
| Start Type | Electric Start |
| Transmission | CVTech IBC CVT, L/H/N/R/P modes |
| 4×4 | Yes, with electronic differential lock |
| Steering | Electronic Power Steering (EPS) |
| Front Suspension | Independent double A-arm, 5-position shocks |
| Rear Suspension | Independent double A-arm, 5-position shocks |
| Brake Type | Hydraulic disc brakes front and rear |
| Dimensions (L×W×H) | 2100 × 1100 × 1150 mm (82.7 × 43.3 × 45.3 in) |
| Wheelbase | 1260 mm (49.6 in) |
| Seat Height | 530–540 mm (21 in) |
| Ground Clearance | 250 mm (9.8 in) |
| Curb Weight | 355 kg (783 lb) |
| Fuel Tank Capacity | 14 L (3.7 gal) or 17 L depending on version |
| Towing Capacity | 873 lb (396 kg) |
| Rack Capacity (Front/Rear) | 20/40 kg or 30/60 kg depending on version |
| Tire Sizes | 25×8‑12 front, 25×10‑12 rear on 12-inch aluminum rims |
| Accessories | 2500 lb winch, 2-inch hitch, LED lighting, USB/12V ports, mirrors |
🏁 Conclusion
The CFORCE 500 EPS is a well-rounded ATV, offering strong performance with a focus on user comfort and functionality. Its electronic power steering, adjustable suspension, and ample storage capacity make it perfect for both work and recreational activities. With a robust engine, a 2500 lb winch, and towing capabilities, it’s equipped to handle a variety of tasks with ease.
